Air Brakes
Cut-in, cut-out, low-warning pressure and the 3-4-6 leak test sequence on a single page.
CALIFORNIA CDL EDITION
California CDL Exam Sprint Guide
Numbers • Air Brakes • Pre-Trip • Exam Traps
A focused last-minute study guide for California CDL permit test preparation.
- Pages
- 12
- Key Numbers
- 50+
- Aligned
- DL-650
12-page PDF · Instant digital download
The Problem
Stop Studying Everything. Focus on What Matters.
Most CDL candidates aren't short on material — they're buried in it.
The official handbook, practice questions, YouTube videos, and random cheat sheets each point in a different direction. By test day, the numbers and rules that actually decide a pass are scattered everywhere.
This guide is a focused review tool, not a replacement for the official handbook. It pulls the exact figures you're most likely to forget into one short, high-density reference.
What's Inside
A Short, High-Density Review
Five focused sections that cover the numbers, rules, and traps that decide a pass — nothing else.
Pre-Trip Inspection
High-frequency walk-around failure points and the official “Point. Touch. Explain.” method.
Key Numbers
Every critical PSI, inch, foot, and percentage value in one place.

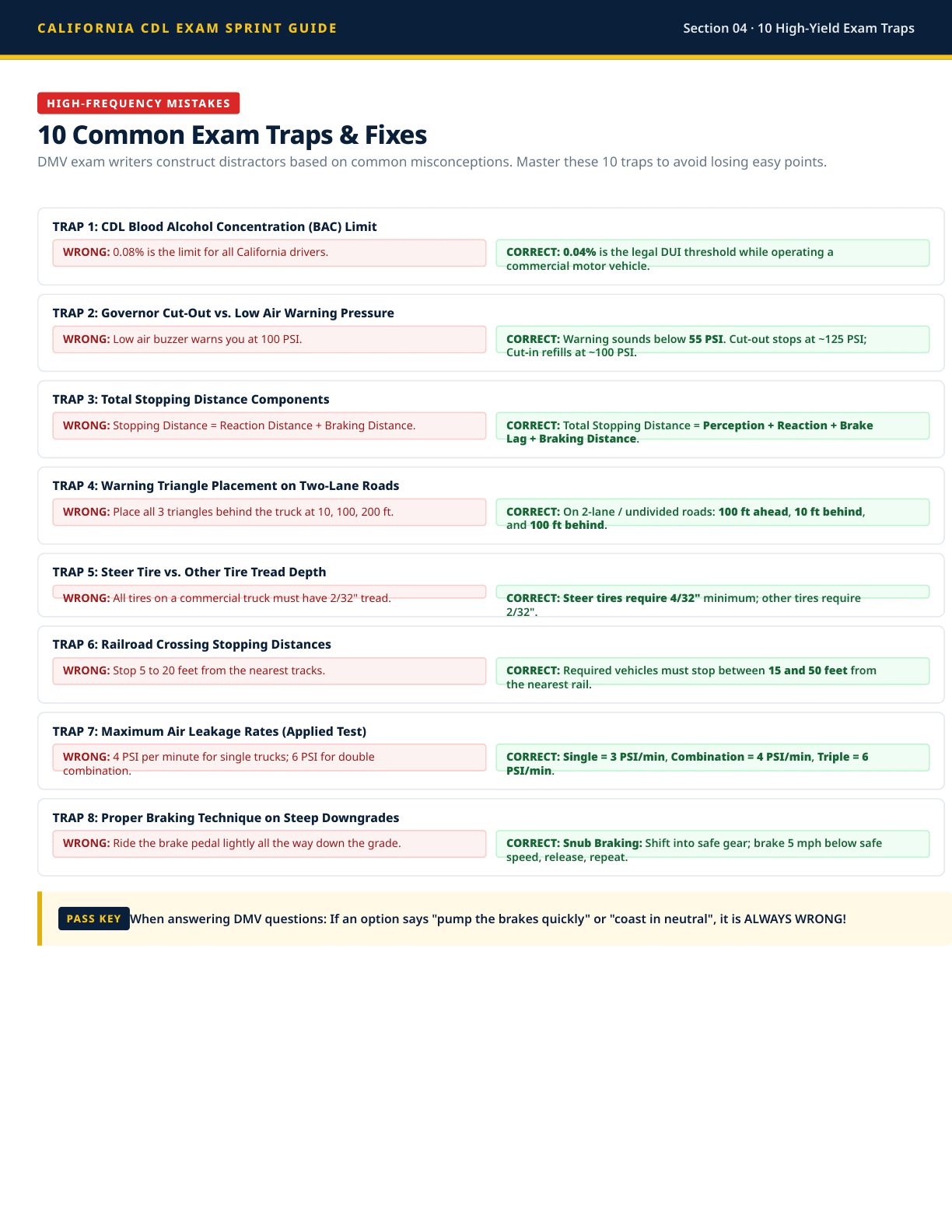

Exam Traps
10 common DMV wording traps with the wrong and correct answers side by side.
Quick Review
Practice question cards and a last-24-hours countdown for the final sprint.
Exam-Day Checklist
A last-24-hours countdown and final readiness checklist to walk in calm and prepared.

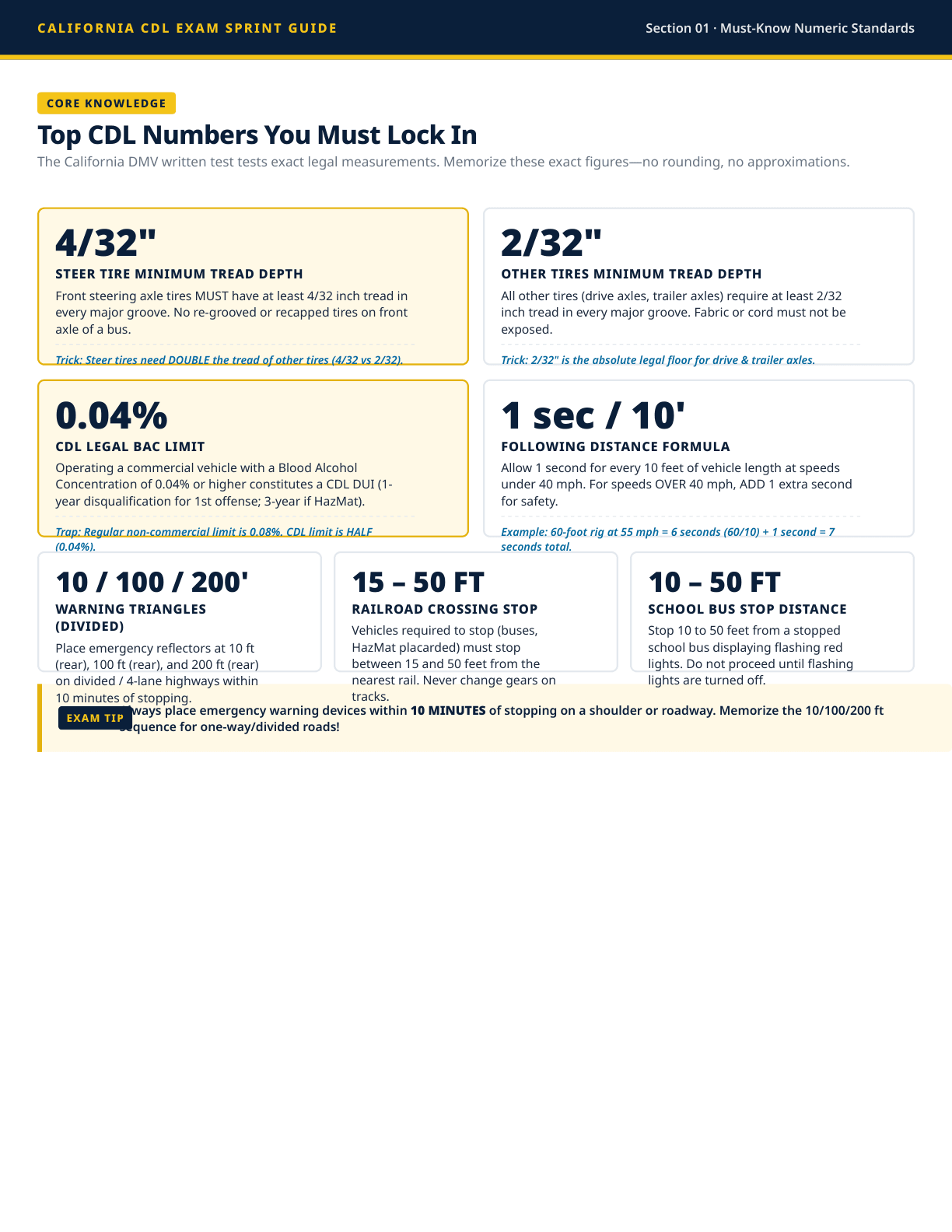

Key Numbers
The Numbers You Don't Want to Forget
A sample of the exact figures the guide locks in — PSI, inches, feet, and percentages, memorized cold.
125 PSI
Governor Cut-Out
Compressor stops filling the tanks.
100 PSI
Governor Cut-In
Compressor starts pumping again.
55 PSI
Low Pressure Warning
Buzzer / light must activate below this.
20–45 PSI
Spring Brakes
Brakes pop out and lock automatically.
4/32″
Steer Tire Tread
Front axle minimum — double the rear.
2/32″
Other Tire Tread
Drive & trailer axle minimum.
0.04%
CDL BAC Limit
Half the regular-driver 0.08% limit.
1 sec / 10 ft
Following Distance
Add 1 second over 40 mph.
10 / 100 / 200 ft
Warning Triangles
Divided / one-way highway placement.
15–50 ft
Railroad Crossing
Required vehicles stop in this zone.
1 / 10 ft
Cargo Tie-Downs
Minimum 2 tie-downs on any cargo.
3 / 4 / 6
Applied Air Leak Rate
Single / combination / triple — PSI/min.

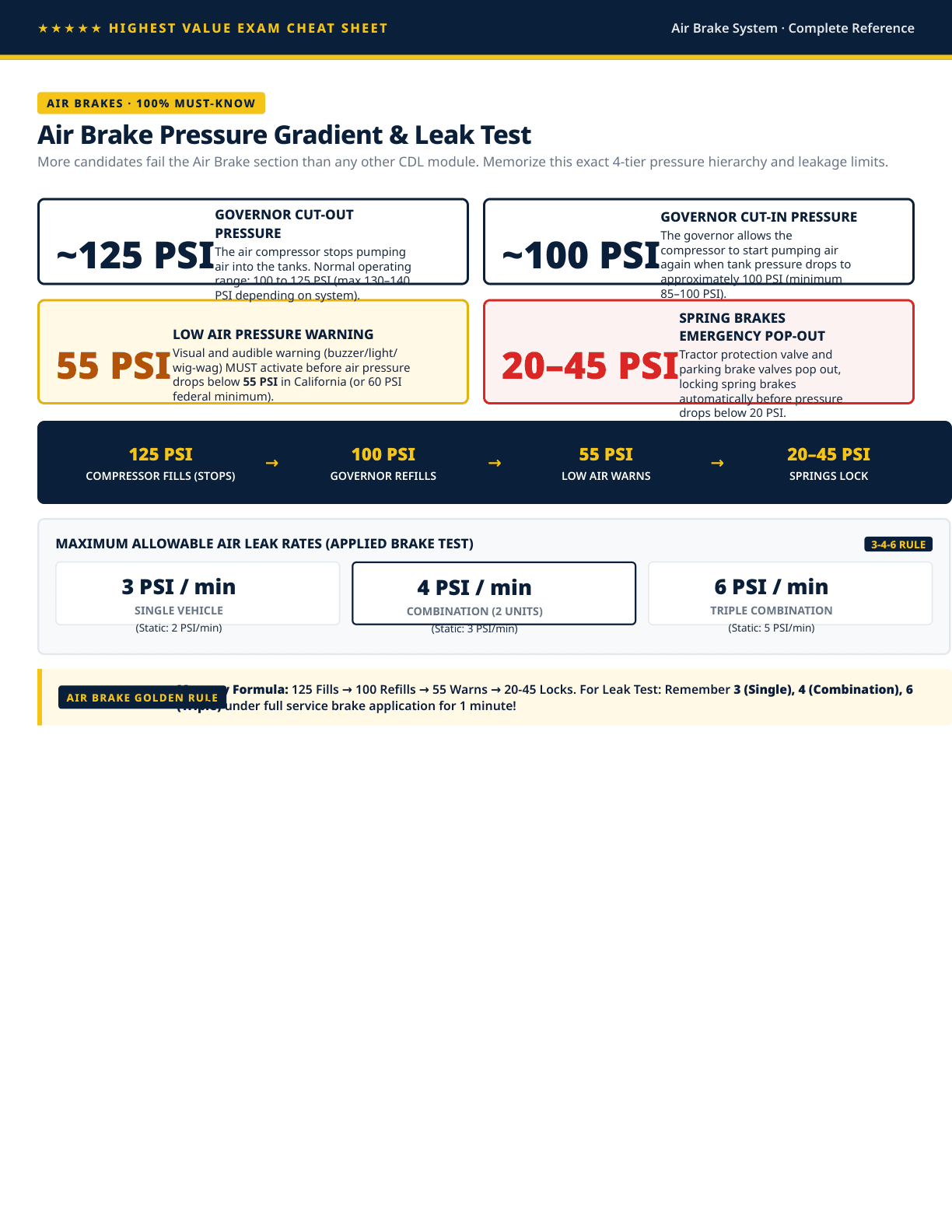

Air Brakes
Air Brake Numbers, Simplified
The air brake section fails more candidates than any other. Two sets of numbers to lock in: the pressure gradient and the leak rates.
Pressure Gradient
- 01125Cut-Out
- 02100Cut-In
- 0355Low Warning
- 0420–45Springs Lock
Memory rule: 125 Fills → 100 Refills → 55 Warns → 20-45 Locks.
Air Leak Rates (PSI/min)
Applied Test
- Single Vehicle3 PSI/min
- Combination4 PSI/min
- Triple Combination6 PSI/min
Static Test
- Single Vehicle2 PSI/min
- Combination3 PSI/min
- Triple Combination5 PSI/min
Preview
See Exactly What You Get
Real pages from the 12-page guide — no mockups.
Who It's For
Built For Last-Minute Review
- ✓Taking the California CDL permit test
- ✓Reviewing before test day
- ✓Refreshing key numbers and PSI values
- ✓Reviewing air brake rules
- ✓Avoiding common exam traps
Not For
Someone looking for a complete replacement for the California Commercial Driver Handbook.
Clear Expectations
What This Is — And What It Isn't
This Guide Is
- ✓A focused review tool
- ✓A quick-reference guide
- ✓A memory aid for key numbers
- ✓A last-minute study companion
This Guide Is Not
- ✕The official California DMV handbook
- ✕A replacement for official study materials
- ✕A guaranteed-pass product
- ✕Professional legal advice
Accuracy
Built From Official California CDL Materials
The content was prepared against and checked against the California Commercial Driver Handbook (DL-650).
California Commercial Driver Handbook (DL-650)
Aligned with the California Commercial Driver Handbook (DL-650, Rev. 8/2023).
This is an independent study guide based on publicly available California CDL materials. It is not a DMV product and is not DMV approved.
How It Works
Three Simple Steps
- 01
Purchase
Complete a one-time purchase of the guide.
- 02
Get Access
Receive access to your digital copy.
- 03
Study
Open the guide and start your final review.
Pricing
California CDL Exam Sprint Guide
$9.99
One-time purchase. No subscription.
- ✓Complete 12-page PDF guide
- ✓Instant digital access after purchase
- ✓Printable PDF
- ✓Access to your purchased version
One-time purchase. No subscription.
FAQ
Questions, Answered
Is this an official California DMV product?+
No. This is an independent study guide created for California CDL permit test preparation. It is not affiliated with, endorsed by, or sponsored by the California DMV.
Is this a replacement for the California CDL handbook?+
No. It is designed as a focused review and memory aid, not a replacement for the official California Commercial Driver Handbook (DL-650).
Is this a physical book?+
No. It is a digital PDF product delivered electronically.
When will I receive it?+
Digital access is provided after successful payment. Once your order is confirmed, you can unlock and download the guide.
Can I print it?+
Yes, if the purchased PDF version supports printing.
Is this only for California?+
Yes. The guide is specifically designed around California CDL test preparation and the California Commercial Driver Handbook (DL-650).
Does it guarantee that I will pass?+
No. No study guide can guarantee a test result. This guide focuses on the numbers, rules, and exam traps that are easy to forget.
Ready for a Faster Final Review?
Review the numbers. Review the rules. Walk into test day prepared.
